Experiment 5 : Buzzer

Description :

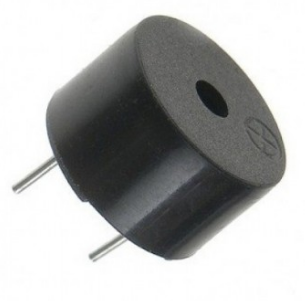

This experiment is done in order to understand the functioning of a buzzer using Arduino.A buzzer or beeper is an audio signaling device which is used as alarm devices, timers, and confirmation of user input

Components Used :

• Arduino Uno
• Buzzer x 1
• Breadboard x 1
• Breadboard Jumper Wire x 2
• USB cable x 1

Circuit :

Connections are made according to the Circuit given

Code :

#define BUZZER 10
void setup()
{
  pinMode(BUZZER, OUTPUT);
}
void loop()
{
  digitalWrite(BUZZER, HIGH);
}

Video :

The output of this experiment would be like this :
